Company Introduction
We are focus on all kinds of rack and pinion driving vertical access machinery and Supply design, solution and OEM to all customers all over the world!
Builder's hoist, Tower crane mini hoist, industrial lift, mast climbing platform, Mast climber.
500kg-3000kg loading capacity passenger cum material constriction site building lift
Its main products include:
PLC construction lifts.
Low, medium, and high-speed variable frequency construction lifts.
Special purpose construction lifts, such as power plant cold water tower construction lifts, mini rack construction lifts for tower crane, and mine construction lifts.
Inclined construction lifts.
Small rack observation lift.
High-level test bed maintenance lift.
Other OEM type rack and pinion vertical lift.

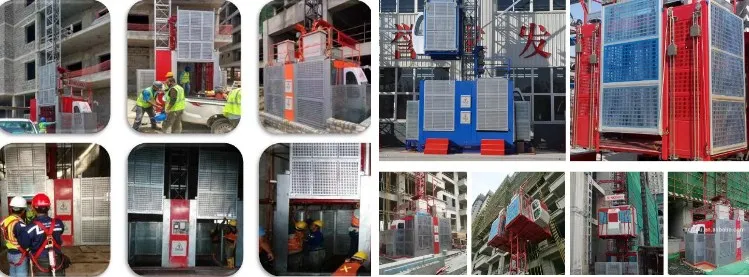

Successful projects:
Our rack and pinion hoist have sent to more than 30 countries and get well feedbacks from them!
Product description
Common PLC Control Construction building hoist :
Specification | Type | Lifting Capacity | Lifting Speed | Motor Power | Safety Device |
Single cage without counter weight | SC100 | 1000Kg | 33m/min | 2*11Kw | SAJ 30-1.2 |
SC150 | 1500Kg | 2×13Kw | SAJ 40-1.2 | ||
SC200 | 2000Kg | 3×11Kw | SAJ 40-1.2 | ||
Twin cages without counter weight | SC100/100 | 1000Kg×2EA | 2×11Kw×2EA | SAJ 30-1.2 | |
SC150/150 | 1500Kg×2EA | 2×13Kw×2EA | SAJ 40-1.2 | ||
SC200/200 | 2000Kg×2EA | 3×11Kw×2EA | SAJ 40-1.2 |
Construction rack and pinion elevator of Low speed :
Specification | Type | Lifting Capacity | Lifting Speed | Motor Power | VFD | Safety Device |
SC100L | 1000Kg | 0~33m/min 0~40m/min | 2×11Kw | 30Kw | SAJ 30-1.2 | |
SC150L | 1500Kg | 0~36m/min 0~46m/min | 2×13Kw 2×15Kw | 30Kw 37Kw | SAJ 40-1.2 | |
SC200L | 2000Kg | 0~40m/min 0~46m/min | 2×15Kw 3×11Kw | 37Kw | SAJ 40-1.2 | |
Twin cages without counter weight | SC100/100L | 1000Kg×2EA | 0~40m/min | 2×11Kw×2EA | 30Kw×2EA | SAJ 30-1.2 |
SC150/150L | 1500Kg×2EA | 0~36m/min 0~46m/min | 2×13Kw×2EA2×15Kw×2EA | 30Kw×2EA37Kw×2EA | SAJ 40-1.2 | |
SC200/200L | 2000Kg×2EA | 0~40m/min 0~46m/min | 2×15Kw×2EA2×11Kw×2EA | 37Kw×2EA | SAJ 40-1.2 |
Construction rack and pinion elevator of Mediaum speed :
Specification | Type | Lifting Capacity | Lifiting Speed | Motor Power | VFD | Safety device |
Single cage without counter weight | SC 100 M | 1000Kg | 0~60m/min | 3×13Kw | 45Kw | SAJ 30-1.4 |
SC 150 M | 1500Kg | 0~63m/min 0~60m/min | 3×15Kw 2x19Kw(87Hz) | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200 M | 2000Kg | 0~60m/min 0~63m/min 0~70m/min 0~75m/min | 2×23Kw(87Hz) 3×15Kw 3×19Kw(87Hz) 3×23Kw(87Hz) | 55Kw 55Kw 75Kw 75Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-1.6 | |
Twin cages without counter weight | SC 100/100 M | 1000Kg×2EA | 0~60m/min | 3×13Kw×2EA | 45Kw | SAJ 30-1.4 |
SC 150/150 M | 1500Kg×2EA | 0~63m/min 0~60m/min | 3×15Kw×2EA 2x19Kwx2EA | 45Kw 55Kw | SAJ 40-1.4 | |
SC 200/200 M | 2000Kg×2EA | 0~60m/min 0~63m/min 0~70m/min 0~75m/min | 2×23Kw×2EA(87Hz)3×15Kw×2EA 3×19Kw×2EA(87Hz)3×23Kw×2EA(87Hz) | 55Kw 55Kw 75Kw 75Kw | SAJ 40-1.4 SAJ50-1.6 SAJ50-1.6 SAJ50-2.0 |
Construction rack and pinion elevator of Hight speed :
Specification | Type | Lifting Capacity | Lifiting Speed | Motor Power | VFD | Safety device |
Single cage without counter weight | SC 200 H | 2000Kg | 0~80m/min 0~96m/min | 3×26(87Hz) 3×18.5(87Hz) | 90Kw 110Kw | SAJ 50-2.0 |
Twin cage without counter weight | SC 200/200 H | 2000Kg×2EA | 0~80m/min 0~96m/min | 2×3×26(87Hz) 2×3×18.5(87Hz) | 90Kw×2EA 110Kw×2EA | SAJ 50-2.0 |
1.Standard cage inner size: 3000×1500×2200mm(L×B×H)
2.Cage Length can be OEM: 1000~4500 mm
3.Mast section size: 650×650mm
4.Maximum Lifting Height: 450m
5.Power Source: 220V~380V~480V,50Hz/ 60Hz
Cage& Cabin.
2.Cage Length can be OEM: 1000~4500 mm
3.Mast section size: 650×650mm
4.Maximum Lifting Height: 450m
5.Power Source: 220V~380V~480V,50Hz/ 60Hz
Cage& Cabin.
The cage can be made according to customers requirement. small or big type all ok for us.
Mast section.
different type of mast section we can provide, like 650*650*1508mm, 650*200*1508mm, 650*1508 flat type, 650*900*1508mm, 450*450*1508mm, 800*800*1508mm type and so on.
Cage steel frame.
Cage steel frame.
All steel frames are welding fixed inside Jig to keep each product according to technique requirement
Enclosure: different type can be chosen like wire mesh materials, steel punched type, ex-metal plate type...
Driving machinery is very important , it will influence the smoothly and steady running, we pay much more attention to each details.
All electrical part are chosen by us, and schneider brand is our standard type for customer..., test and inspection inside factory must be taken before loading.
Completed safety measures for construction building hoist
1. Equipping with Anti-falling safety device governor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.
8. Ramp door for (Ex.door of cage).
1. Equipping with Anti-falling safety device governor
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch
3. Safety hook
4. Upper and bottom limit switches, trap door limit switch
5. Overload protector
6. Bottom Buffer
7. Level Calling system and auto leveling device to be choose.
8. Ramp door for (Ex.door of cage).
Maker technology
Proffessional Manufacturer of rack and pinion building hoist.
1. -All Production Line adopt special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.
2.- Select high quality raw material from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each equipment should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed equipment run well when take into use.

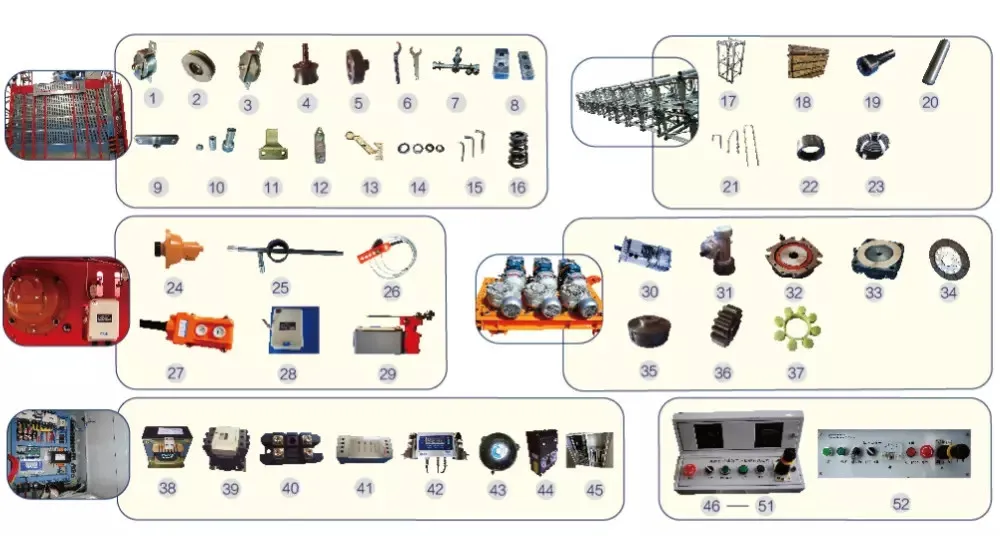

Spare parts &Service
99.8% Response Rate
96.8% Response Rate
We Supply all construction building hoist with 1 year warranty period from delivery, and can provide a Engineer for oversea's installation and maintenance, tranning or site guidance.
